Multi-Positions Three Phase Stationary Meter Test Equipment

Name: MultiPositions Three Phase Stationary Meter Test Equipment
Brand: GENY
Price: 1 USD

Quality Multi-Positions Three Phase Stationary Meter Test Equipment for sale

Brand Name : GENY

Model Number : YC-1893D

Certification : ISO, CE

Place of Origin : CHINA

Payment Terms : L/C,T/T,D/P

Model NO. : YC1893D

Test voltage output(Phase-Neutral) : 3x(24V~288V)(or customized)

Voltage supply : 3x220/380V±10%(or customized) 50/60Hz ±2Hz

Ambient temperature : -10°C~+40°C

Relative humidity : 35%~85%

Contact Now

Multi-Positions Three Phase Stationary Meter Test Equipment

Description:

1. The meter test system is capable of measuring mechanical and electronic meters, as well as electronic meters, through automatic, semi-automatic or manual operation.
2.Meters under testing: 3P4W, 3P3W, 1P2W
3. Testing mode: active power, reactive power, and cross-connected reactive power.
4. Simultaneously measure meters with the same specifications but different meter constants.
5. Automatically position the rotor mark of the disc of the mechanical meter, increasing efficiency.
Initiate the test and creep test.
Carry out the neutral current test (if required).
Install the ICT in each meter position to test three-phase meters with closed links between the current and voltage measuring circuits (I-P links) (if required).
Activate the protection function of overload, short voltage circuit and open current circuit.
10. The synchronised movement of the scanning heads streamlines the control process.
11. The product is made from aluminium alloy, a lightweight yet durable and corrosion-resistant material. The testing software, compatible with Windows 2000, XP, 7, 8 and 10, includes a range of functional modules for various modern energy meters. These modules facilitate testing for real-time error, harmonic, demand and influence, among others.

Technical specification

Technical spec.	YC1893D-6	YC1893D-12	YC1893D-24	YC1893D-48
Number of meter positions	6	12	24	48
Accuracy	0.05 / 0.02
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Standard Meter	SZ03A-K6 / SZ03A-K8
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max. 3x100VA	Max. 3x250VA	Max. 3x500VA	Max. 3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA	Max. 3x350VA	Max. 3x750VA	Max. 3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%

Multi-Positions Three Phase Stationary Meter Test Equipment

For more information, you can visit our website:http://www.genymetertestequipment.com/

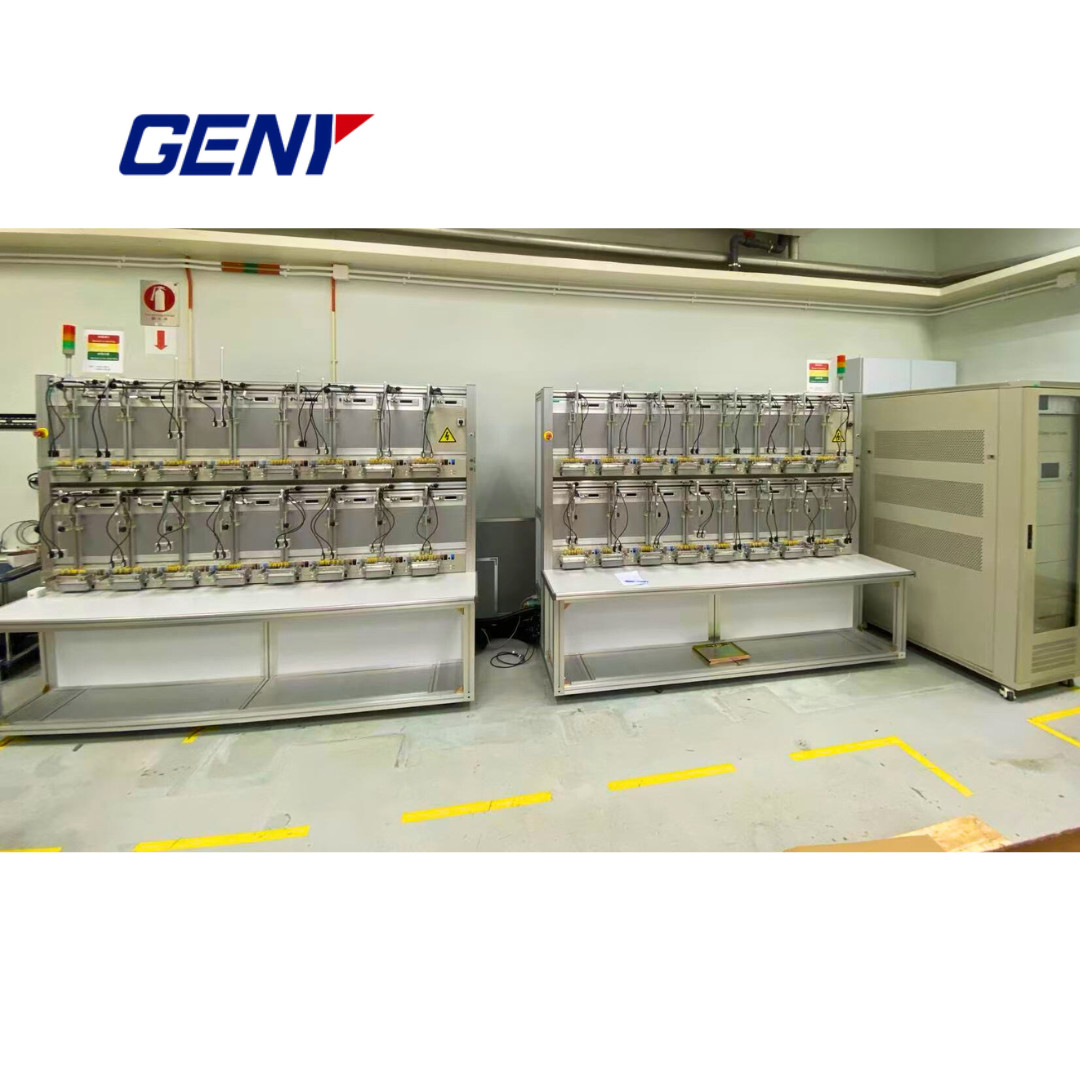

Multi-Positions Three Phase Stationary Meter Test Equipment Images
